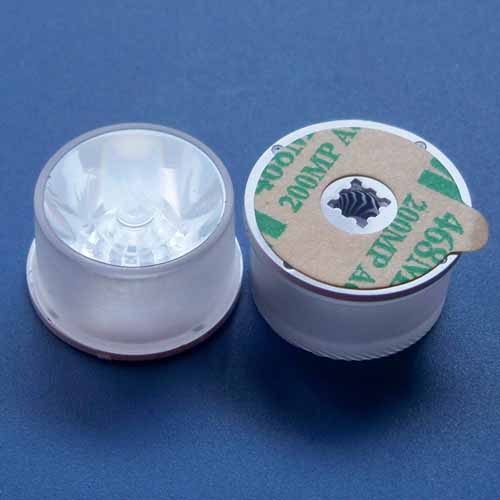

Home > Product > LED Lenses and LGP > CREE-OSRAM-LUXEON-SEOUL-PROLIGHT |5050 |3535 |3030 Waterproof LED LensesDiameter 22mm waterproof Led lens with holder for CREE XPE 3535 LEDs(HX-WP Series)
- Model:HX-WP Series LED Lens
- Dimension:Dia.20.0 H11.55mm
- Transmittance:93%
- For LED:CREE XPE,XPG,XTE|Seoul Z5P|Luxeon T,Nichia 119A LEDs
- FOV (Beam angle):many kinds
Introduction :
HX-WP Series LED lens is a single molded piece optic family suitable for challenging environments and outdoor applications. Special attention has been paid to ensure easy ingress protection for applications requiring IP ratings up to IPX8,Easily sealable miniature optics for challenging environments and outdoor lighting .Diameter 22.0mm,Height 11.55mm easily sealable waterproof TIR-lenses for up to 3535 size LED packages.
For example :
CREE XHP35,XHP35-HI;
CREE XP-E,XP-G/G2,XP-L,XT-E;
Seoul Z5P,Z5M;
Luxeon T,Federal 3535;
LG 3535, Samsung 3535;
Nichia 119A;
|
Photo |
Part No. |
Dim. (mm) |
Beam Angle |
Notes |
|
HX-WP-6 (clear surface)
|
￠22.0
H 11.55 |
6°(FWHM)
|
|
|
|
HX-WP-15M (frosted surface)
|
￠22.0
H 11.55 |
15°(FWHM)
|
|
|
|
HX-WP-30L(beads surface)
|
￠22.0
H 11.55 |
30°(FWHM)
|
|
|
HX-WP-45L(beads surface)
|
￠22.0
H 11.55 |
45°(FWHM)
|
|
|
|
HX-WP-60L(beads surface)
|
￠22.0
H 11.55 |
60°(FWHM)
|
|
|
HX-WP-1045 (Ripple Linear)
HX-WP-1060 (Ripple Linear) |
￠22.0
H 11.55 |
10(±5) x 45(±5)
10(±5) x 60(±5) |
|
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
